Product Specifications
| Prod Model: |
RG104XA02CW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
10.4 Inch |
| Resolution: |
1024X768 |
| Contrast Ratio: |
500:1 |
| Luminance: |
400 CD/M2 |
| Interface Pins: |
Lvds 30pin |
| Active Area: |
211.2X158.4 |
| Module Size: |
236.0X174.3X7.4 mm |
| Backlight: |
3X13 LEDs |
| LED Lifetime: |
30000 Hr |
| Viewing Direction: |
6 O'clock |
| Usage: |
Small-sized LCM |
| Type: |
LCM |
| Response Time: |
25ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
TFT |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven Control Type |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Customized: |
Customized |
| Digital LCD Module Type: |
TFT LCD |
| Touch Screen Type: |
No Touch |

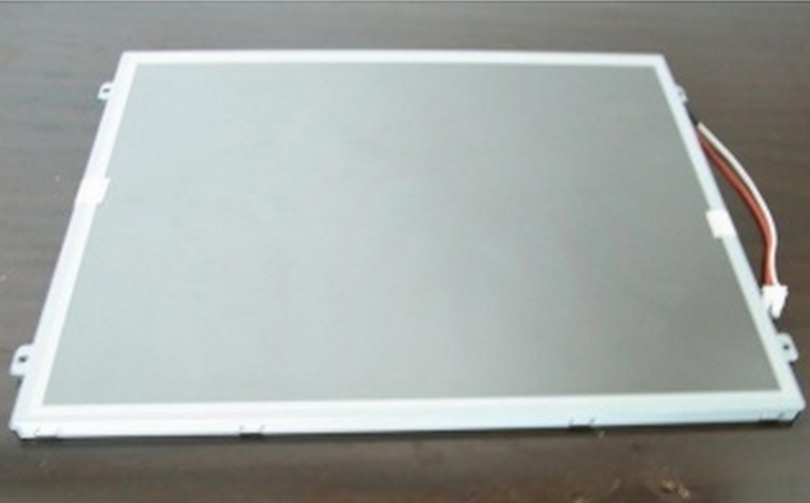

Product Description
General Specification:RG104XA02CW is 10.4" color TFT-LCD (Thin Film Transistor Liquid Crystal Display)
module composed of LCD panel, driver ICs, control circuit, and backlight.
The 10.4" screen produces a high resolution image that is composed of 1024×768 pixel
elements in a stripe arrangement. Display 262K colors by 6 Bit R.G.B signal input.
| ITEM | SPECIFICATION |
| Panel Size | 10.4 inch(panel diagonal) |
| Display Area (mm) | 211.2(H)×158.4(V) (10.4-inch diagonal) |
| Number of Pixels | 1024(H) × 3(RGB) × 768(V) |
| Pixel Pitch (mm) | 0.20625 x0. 20625 |
| Color Pixel Arrangement | RGB vertical stripe |
| Display Mode | Normally white |
| Number of colors | 262,144 |
| Brightness(cd/m 2 ) | 400(typ.) |
| Response Time (Tr+Tf) | 25 ms |
| Module Size (mm) | 236(W)×174.3(H)×7.4(D) (with PWB and Component) |
| Viewin Angle(BL on,CR>=10) | 150 degree(H),140 degree(V) |
| Power consumption(W) | 4.0W(typ) / 4.3W(max) |
| BL unit | LED |
| Electrical Interface(data) | LVDS |
| Viewing Direction | 6 o´clock (Max contrast ratio, Gray Level Inversion) |
| Weight(g) | 385 (g) |
| Surface Treament | Anti-Glare,Hardness:3H |

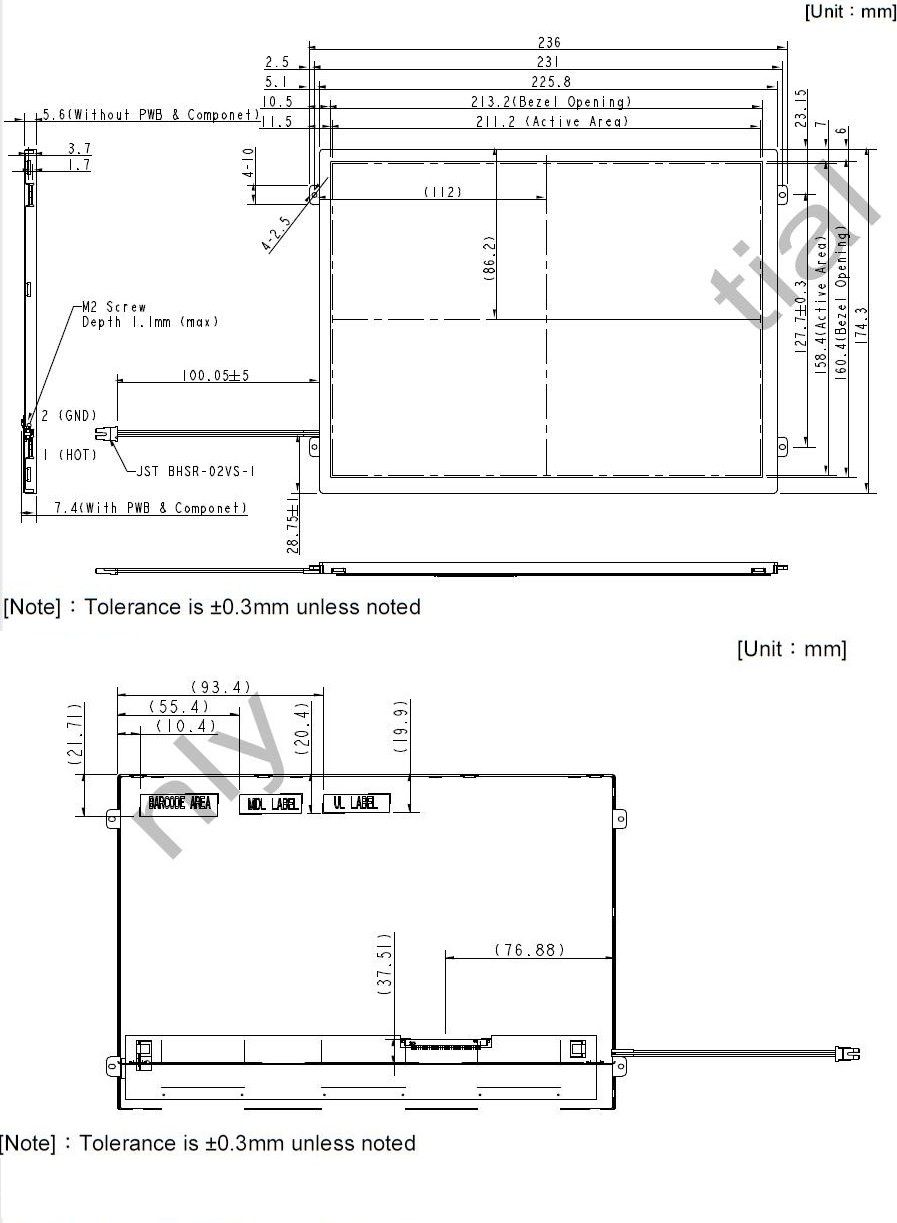

Merchanical Drawing :
