Product Specifications
| Prod Model: |
C155 |
| Technology: |
Infrared |
| Style: |
Dome Camera |
| Type: |
Car Camera |
| Sensor: |
CCD |
| HDMI Format: |
720P |
| Horizontal Resolution: |
480tvl |
| Kind: |
Autofocus Lens |
| Certification: |
ISO9001: 2000 |
| Feature: |
Auto BLC |
| Effective Distance: |
10-30m |
| Sensor Size: |
1/3 inch |
| Remote Control: |
Without Remote Control |
Product Description

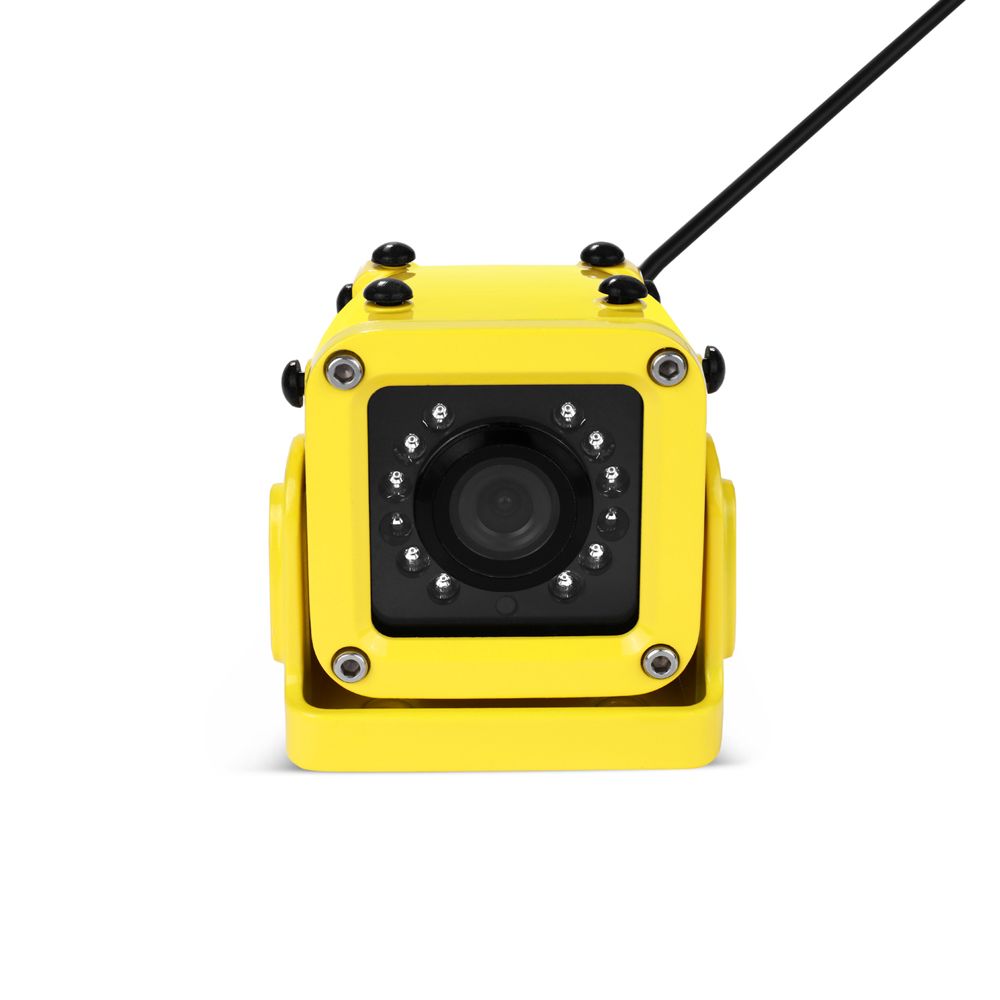

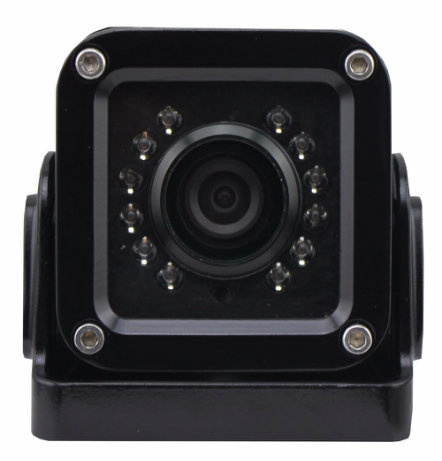

Item:C155 IR camera
IP rating: IP67
Filter:Double Layers Crystal
Image Sensor:1/3" color Sony CCD
Pixels:1.0/1.3 Megapixel
IR LED:12PCs IR LED
Vertical frequency: NTSC:60Hz PAL:50Hz
Horizontal Frequency:NTSC:15.734KHz PAL:15.625KHz
Clock Frequency: NTSC:28.636MHz PAL:28.375MHz
Scanning System :2:1 Interlace
S / N Ratio:≥48dB
Electronic Shutter:NTSC:1/60/10000s PAL:1/1511/10000s
White Balance:Auto Tracking
Back Light Compensation:ON
Auto Gain Control:LON
Gamma:0.45
Video Output :1V p-p,75Ω
Lens:3.58mm Vari-focal Lens
Viewing Angle:Horizontal: 30 °160 °
Power Supply:DC12V ±10%
Current Consumption:110mA
Available IR Distance:15M

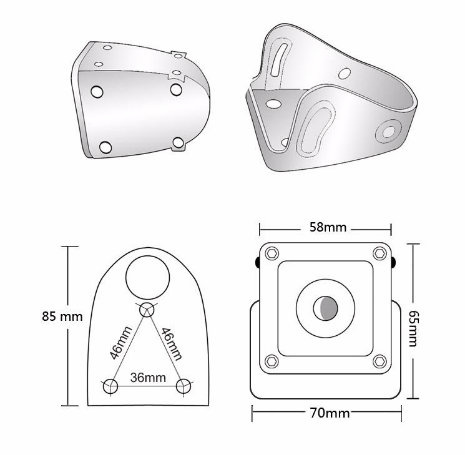

Dimension:60mm*60mm*55mm
Weight:350g
Storage Temperature: -30+60
Operating Temperature: -30+40
Package :1PCs/CTN
400g 100×100×100mm
Shinningpc Technology Co., Ltd is a professional automotive safety systems supplier. We have our own factory and cooperated factories for producing different auto equips products. As a traditional security products manufacturer, we have a clear target that to provide the most competitive products not only in quality but also at price to clients with those mature auto equips. We would like to supply those equips to our clients exactly meet their requirements and surely we adjust our products design according to end user useful advise. And our innovation will make our enterprises as a leading company in the auto security field.
Our products mainly include vehicle mobile safety system, reversing camera system, backup systems, car security monitor, automobile stand-alone monitor, overhead mouting DVD player, headrest DVD monitor, CMOS/CCD night vision waterproof surveillance cameras, vehicle Side Camera, vehicle DVR, mobile DVRs and other auto equips...These products are widely used on cars, vehicles, buses, trucks, trailers, board etc to assure safety while driving/operating.
We concentrate on providing you with reliable equips, every product were strictly tested and inspected. For example, vibration test, waterproof test, vandal-proof test, and aging test are processed to evaluate the product performance. All of our security products come with a 12 month warranty. Also with MOQ and lead-time, we can response quickly and make it finished within 10 working days.
We are sincerely looking for long-term and mutual benefit relationship with stable partners, please don't hesitate to contact with us for further detail.
CE, LVD, RoHS certificate already.
