Product Specifications
| Prod Model: |
WFS-P11-BGD |
| Contact Capacity: |
DC 5-18V |
| Working Temperature: |
0~60c |
| Protection Grade: |
IP68 |
| Type: |
Flow Sensor |
| Measuring Medium: |
Drinking Water |
| Output Signal Type: |
Pulse |
| Material: |
Nylon+Glass Fiber |
Product Description

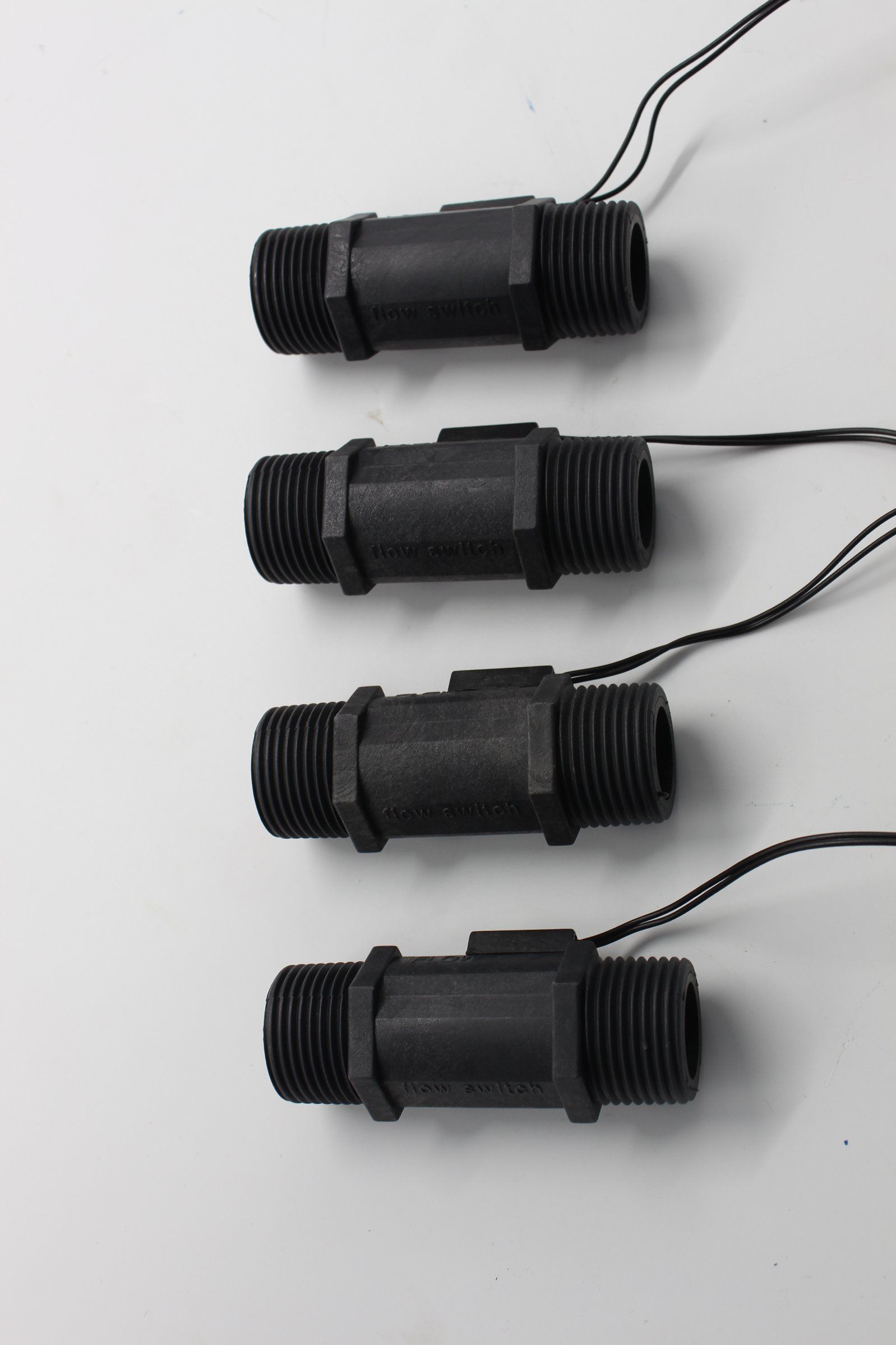

1/2'' DN15 high quality Crystal water flow sensors , black water flow sensor
1.Introduction:
The main water flow sensor by copper body and plastic forming, water flow rotor components, steady flow components and hall components. It into water dispenser, coffee machine and household appliances the water used for measuring the water flow.
When water flows through the rotor components, magnetic rotor rotating, and speed along with the flow of a linear change. Hall element output corresponding pulse signal feedback to the controller, the size of the flow of water by controller judgment, adjust proportional valve control of electric current.
Water flow sensor fundamentally solve the differential water-gas valve flap type high pressure and start water valve easy misoperation appear dry and shortcomings.It has reflected sensitive, long service life, action quick, safe and reliable, joins convenient traffic advantages such as the start low, deeply the general user affection.
2.Technical Parameter:
| Model | WFS-P11-BGD |
| Rated Voltage | AC 5-24V |
| Max.Current | 10mA |
| Material | Nylon+Glass fiber |
| Max.Using Temperature | 60C |
| Protection Degree | IP68 |
| Working Pressure | 1.75MPa |
| Flow rate | 0.5-25L/min |
| Connection | G1/2'' |
| Pulse duty cycle | 50% |
| Flow rate pulse character | F=6*Q(L/min),±10% |
| Insulation resistance | >100MΩ |
3. How to pay and how to delivery?
PayPal, WESTERN UNION, Maestro, MoneyGram, VISA
UPS, FedEx, TNT, DHL, EMS
4. Packaging:
1. For each type, we can send you the detailed high-resolution pictures since we have the sample in our hand.
2. For packaging, we have the professional packaging starff, pls. don't worry about the shipping.
For an example:
Our service
1. Delivery time is 5~7 days for sample and 15 working days for bulk order;
2. Strong production capacity and strict quality control system;
3. Your inquiry and problems related to our products or prices will be replied in 24 hours;
4. Well-trained and experienced staffs to answer all your inquires;
5. After-sale tracking service for all of our clients;
6. OEM is available; small quantities, mixed bulk orders are also welcome;
7. Payment: L/C, D/A, D/P, T/T, Paypal , Western Union, MoneyGram;
8. Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.
After-sales service
1.1~2years warranty for most of our products;
2.We will arrange delivery of the goods on time:
3.Within the warranty period, we will bear all the qulity problem of our produts;
4.Beyond the warranty period, we will despatch the replacement parts to help fix the products;
5.Without any problem, we will gain the feedbacks of our products to help improve better products.
