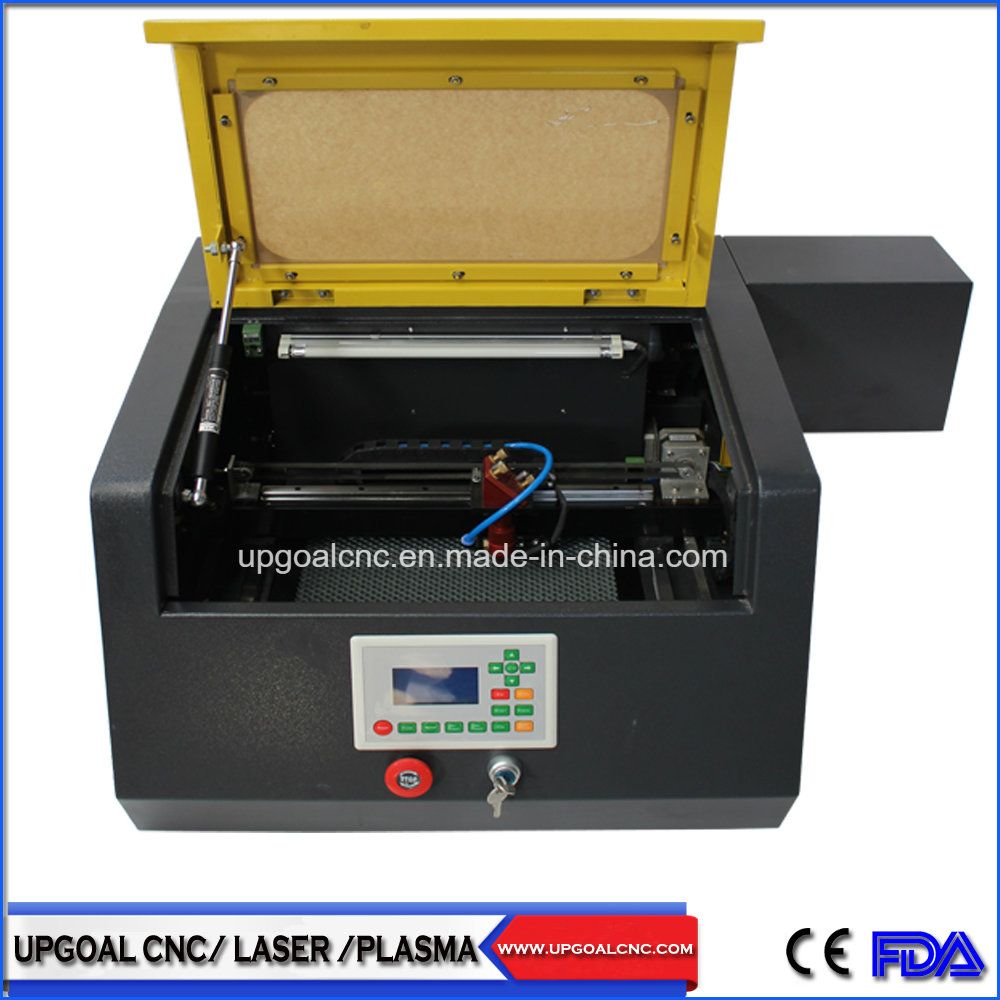

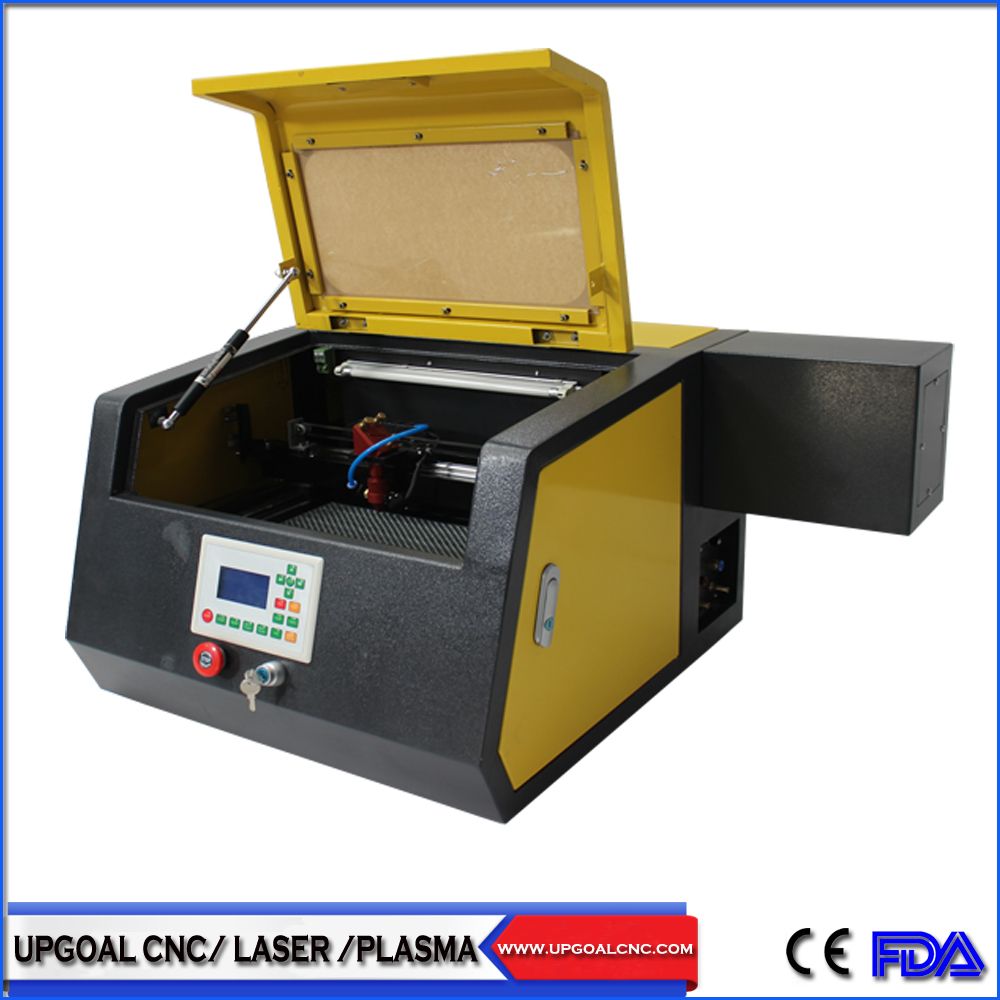

Mini 300*200 Desktop Small CO2 Laser Engraving Cutting Machine

Mini 300*200 Desktop Small CO2 Laser Engraving Cutting Machine
Price: US $ 1000-2000set
Min Order: 1set
Pay Type: L/C,T/T,D/P,Western Union,Paypal

Product Specifications


Prod Model: UG-3020L
Working Area: 300*200mm
Laser Type: CO2 Sealed-off Laser Tube
Rated Laser Power: 40W
Working Table: Honey Comb
Driver And Motor Type: Yako Stepper Motor and Driver
Guide Rail: Linear Square Guide Rail
Control System: Ruida 6442
Software: Rdworks V8
Transmission: 3m Belt
Positioning: Infrared Positioning

Product Description

Mini 300*200 Desktop Small Co2 Laser Engraving Cutting Machine






Features


Laser Head

Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

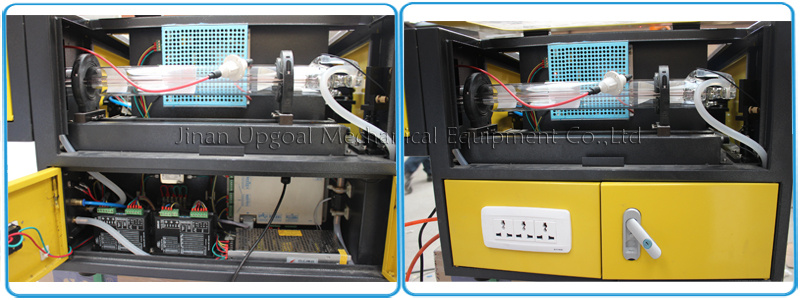

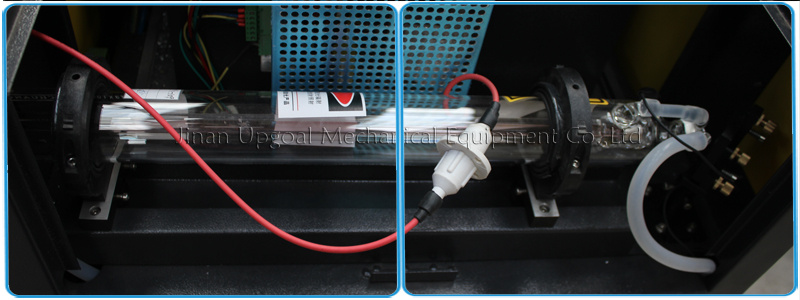

Laser Tube

Adopted famous 40W Co2 laser tube, more powerful, long time time and stable



Working Table

Honey Comb Table: applicable to various soft materials with Good adsorption effect and low reflection ratio.

Beam Path System

Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

Motion System

Imported High precision, low friction force and stand wear and linear guide rails and blocks with 3M belt ensured stable transmission, lower noise

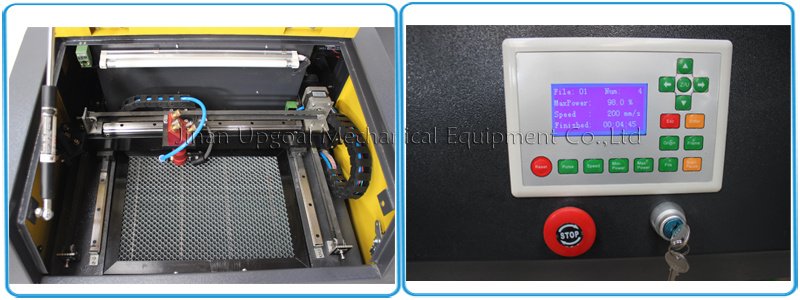

Operation System

Advanced USB port Ruida DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.

Rationalized placement of the electronic parts. Optimized heat dissipation effect.



Technical Parameters


Effective working area

300*200mm

Laser Type

Co2 sealed-off laser tube

Laser tube power

40W

Working table

Honey comb

Driver mode

Stepper motor and Driver

Guide rail

Linear square guide rail ( Hiwin,Taiwan)

Transmission

Belt transmission

Control panel

English

Laser output control

1-100% software setting

Engraving speed

0-60000mm/min

Cutting speed

0-10000mm/min

Control system

RuiDa

Control software

RDWorks

Design software when delivery

CorelDraw

Control panel

DSP offline

Resolution accuracy

< 0.01mm

Location precision

< 0.01mm

Highest scanning accuracy

2500DPI

Type of cooling

Water pump cooling

Water protection system

Yes

Blow-off system

Air pump for the laser head

Air blower for the machine

Biggest scanning accuracy

2500DPI

Working temperature

0-45 °C

Operating humidity

5-95% (without condensed water)

Supporting picture format

PLT,DST,DXF,BMP, DWG,AI,LAS,etc

Voltage

AC 220V±10% 50/60Hz, single phase or
AC 110V±10% 50/60Hz, single phase

Certificate

CE/FDA



Applications

Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.

Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc

Materials Can work With: Organic glass, acrylic board (the paulownia,  lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.


Reference Working Videos

https://www.youtube.com/watch?v=nPr-WlK5u9w&index=6&list=PLZ2SG5kTfvfOCXsQbxHpyInEaDg01cVvL

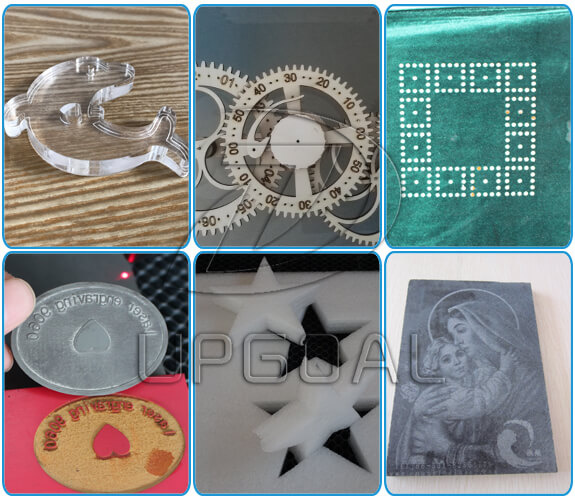

Reference Sample Photos





 For more information, just feel free to contact us!
