Product Specifications
| Prod Model: |
DEK-1390 |
| Cutting Area: |
1300*900mm |
| Cutting Thickness: |
0-30mm |
| Cutting Speed: |
0-40000mm/Min |
| Graphic Format Supported: |
Ai, BMP, Dst, Dwg, Dxf |
| Certification: |
Ce, FDA |
| Laser Power: |
60W/80W/100W/150W |
| Driving System: |
Stepper Motor and Drivers |
| Control Configuration: |
Ruida Control System |
| Belt: |
Fulong Belt |
| Rail: |
Hiwin Square Guide Rails |
Product Description

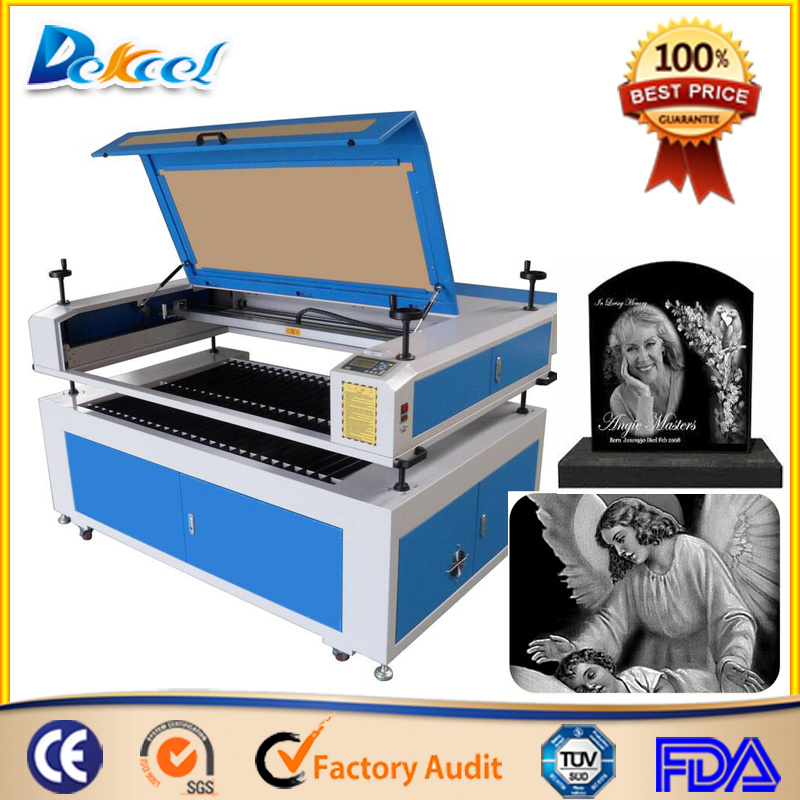

Features of 1390 cnc co2 laser engraver for sale
1) Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
2) LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.
3) Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
4) Special Front and back running through design, the unique door for the limitless engraved materials through.
5) Professional Honeycomb or blade table, which meet the needs of diversified laser procession;
6) Water Cooling System with Alarm Protection function, adopt CW-5000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
7)Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, 10000 hours Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
8) High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect.
9) Red Light Pointer realizes the exact position without laser.
Applicable Industries of cnc stone carver:
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration, frame fabrication and etc.
Applicable Materials of co2 laser engraving machine:
Double color boards, acrylic, glass, crystal, wood, foam, bamboo, rubber, plastic, garments, paper, leather, steel, marble, grantie or other stones
Technical Parameters of marble granite laser engraver machine
| Model | DEK-1390 |
| Working area | 1300*900mm |
| Equipment Dimension | 1850*1320*1510mm |
| Laser power | 60W/80W/100w/130W |
| Laser type | Co2 sealed laser tube,water-cooled |
| Engraving speed | 0-7500mm/min |
| Cutting speed | 0-4000mm/min |
| Power supply | 220v/50Hz 110v/60Hz,required |
| Graphic format support | BMP,PLT,DST,DXF,AI |
| Software supported | CorelDraw,Photoshop,AutoCAD,TAJIMA |
| Driving system | Stepper motor |
| Net weight | 1050kg |
| Optional parts | Up-down worktable,Red dot position,Auto focus |
| Applicable material | Acrylic,glass,ceramic,marble,cloth,fabric,wood,leather,wool,fur,etc |
FAQ:
1. How should I pay for my order? What is the procession of this purchase?
Answer: we accept TT by bank. you can do 30% prepayment at first,then we will start to make production. when the machine is ready,we will take pictures to you,and then you can do the balance. after we got your payment.Iwill send the machine to you.
2. How about your service after sales? Can your engineer speak fluent english?
Answer: we offer the sercice from you got the machine,including how to install the machine, how to use machine,how to let machine work and so on.Usually we will teach you how to do by email or by skype.our engineer has many years of experience for cnc machine service.he can speak very good english,so he can slove the problem in short time.
3. Are you a factory or trading company ?
Answer : We are the manufacturer whose machine made by ourselves,quality can be trusted,and most important thing is we can do better serivce after sales.We know how to fix the problem in each parts easliy,so welcome to visit to our factory
After sales service:
1.1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free. Or charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
