Product Specifications
| Prod Model: |
MT-L960 |
| Max Moving Speed: |
600mm/S |
| Resolution Ratio: |
4500dpi |
| Graphic Format: |
BMP, Plt, Dst, Ai, Dxf |
| Control Configuration: |
DSP |
| Intelligent Memory: |
Store Unlimited Flies up to 128MB |
| Cutting Thickness: |
0-18mm |
| Guide Rail: |
Hiwin From Taiwan |
| Drive System: |
Leadshine Driving System and Stepper Motor |
| Working Table: |
Honey Comb/ up and Down/ Knife (Optional) |
| Laser Power: |
Laser Power: 80W/100W(Optional) |
Product Description

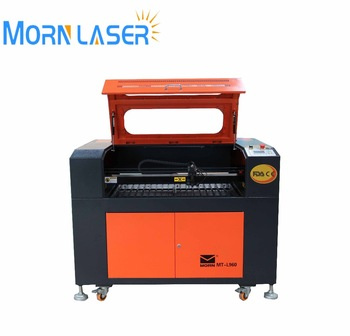

High speed cnc 900*600mm CO2 laser cutting machine price
Description:| 1 | Name | MT-L960 |
| 2 | Working area | 900*600mm |
| 3 | Working table | Honey comb/ up and down/ knife (optional) |
| 4 | Laser power | 80-100W CO2 Laser tube |
| 5 | Power Supply | 110V/220V |
| 6 | Graphic format | BMP, PLT AI, DST, DXF |
| 7 | Resolution | 4500dpi |
| 8 | Resolution rate | 0.05mm |
| 9 | Intelligent memory | Store unlimited flies up to 128MB |
| 10 | Minimum character | English 1*1 |
| 11 | Drive system | Leadshine driving system and stepper motor |
| 12 | Control software | Coreldraw, Photoshop, AutoCAD, etc |

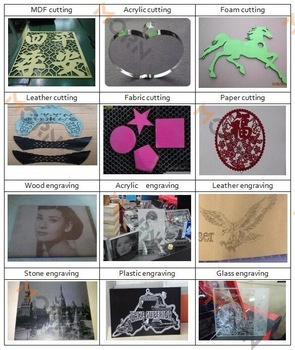

Laser Cutting Machine are many materials can be engraved, such as wood block, bamboo product, acrylic sheet, glass, pvc sheet, double-color sheet, ceramic tile, rubber, plastic, marble, bowlder, crystal, leather and cloth.Etc.Nonferrous materials.
Good Features:1.64-bit processor:It adopts the internationally advanced 64 digits, high speed DSP for control system of the GS laser engraving machine.The processing Capability and stability is highly improved.
2.Optimization of Arc:Stable S-style speed control software, quick and stable motion, which go very well with the automatic laser compensation, all these help the machine do a good job when cutting different parts, like straight lines, angles.
3.USB Interface:It supports the USB interface, with the GS series laser engraving machine, it's not necessary to connect to the computer, in this case, it not only enjoys high anti-interference, but also you can use only one computer to control many laser engraving machines.
4.Storage function:The mainboard has EMS Memory which enables the user to store more than 100 files.
5.Automatic Protection:There's automatic smoke/dust-ejecting system, water cooling system, if there's no water or the water flows in opposite direction, there'll be no laser, which protects the laser tube in an effective way.
The advantage of our company1.Our products are widely used in almost all the materials.
2.Our Company is specialized in CNCrouter and laser machine manufacturing and selling.There is no middle man and no agent, so the price is moderate.
3.Our machine with high precision and high reputation is the most reliable goods that you can choose.
4.Our company has all kinds machines in store, the delivery time is much shorter than other companies.
5.Our Company has international tech service office and provides 24 hours online service to help customers.
Service of our company:
Before sale:We will try to know your requests about what work you will do and help you
Choose the most suitable machine specification & give you the best solution.
During production:We will send photos of machines during production, so customers
Can know more details about the procession of making their machines.
Before shipping:We will confirm the specification of order to avoid the mistake and we
Will test & adjust the machine until it has the best performance.
After shipping:We will give you the tracking information of the sea vessel so customers can know when it will arrive at your port and make enough preparation.
After arrival:We will confirm with you if machine is in good condition, and see if any spare parts were broken during sea shipping then help to solve the insurance
About warranty:We offer 1 years warranty for whole machine and six months warranty for laser tube.If any parts of our machine is broken,we will replace it for free.(no human reason)
FAQQ1: Do I need two laser machines to engrave and cut separately?
A:No, the laser machines we provide are capable of both engraving and cutting.One machine alone can fulfill the two purposes.
Q2: Does the laser machine can connected to a laptop or desktop computer to work?
A:Yes, the machine have professional port to connect computer and also can connected with other machines.It supports Windows 2000, Windows XP, Win 7 and other operating systems
Q3: What kind of graphic format does it support?
A:JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA, PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW , etc.
Q4: How to distinguish laser tubes with different powers and applications?
A:1.Laser tube length (relatively speaking, the longer, the bigger)
2.Laser tube diameter (relatively speaking, the thicker, the bigger)
3.The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger.So, it is better to use a machine with a low-power laser tube to engrave, such as 80W or 100W.
Q5: In general, how long is the service life of a laser tube?
A:Generally, a laser tube's service life can reach 3500 hours to 10000 hours depending on the specific usage.For example, if it works 8 hours per day, the detailed data is as follows:
1.If you set the power at 20-30% of the total power, the service life is about 1-2 years.
2.If you set the power at 40-50% of the total power, the service life is about 1 year.
3.If you set the power at 70-80% of the total power, the service life is about 6-8 months.
Q6: Is it better to increase blow to improve laser processing performance?
A:For some thick materials, it works.But, when carving some other materials, you need to blow less.
Q7: How long will it take to learn to operate a laser machine?
A:If you are able to use some basic graphic design software, it will only take a few hours to master the operation.You just need to do some simple tests on different processing materials to know how to set the correct speed and laser power.
Q8: Is a laser machine in operation harmful to our bodies?
A:It is not harmful as long as the laser is not exposed directly to skin and eyes.
MORN GROUP was founded by Mr. Astone, Ms. Rena and their followers in 2008, harboring the dream of producing high quality made-in-China machinery for world market. The office area is located in High-Tech Zone, Jinan, China, an industrial machinery production center. Our office area takes up 1000 square meters and the factory has 27000 square meters, adjacent to Jinan's largest logistics center.
MORN has two independent business department - LASER Business Department and LIFT Business Department. Respectively, LASER Business Department runs the sub-brand "MORNLASER" and LIFT Business Department runs "MORNLIFT" sub-brand. In August 2017, MORN purchased "GEMWAY" as its sub-brand also operated by LIFT Business Department. Production, R&D, sales, quality control and marketing sectors are set under each business department. MORN now has more than 360 senior technicians, including 26 senior engineers and over 150 sales and professional pre-sales & after-sales staff.
MORN products covers laser machines (fiber laser cutting/marking machines, CO2 engraving/cutting/marking machines) and lift equipment (hydraulic lift platforms, aerial platforms, home elevators and auxiliary loading equipment). Multiple models and configurations, standard and customized production solutions can meet customers' diverse work needs. Currently MORN products have been exported to 155 countries and areas, and overseas warehouses and after-sales service center have been established in America, Britain and Philippines.
