Product Specifications
| Prod Model: |
PE-DP-C1 |
| Controlling Mode: |
CNC |
| Feed Mode: |
Mechanical |
| Spindle Number: |
Single-Spindle |
| Spindle Layout: |
Vertical |
| Condition: |
New |
| Customized: |
Customized |
Product Description

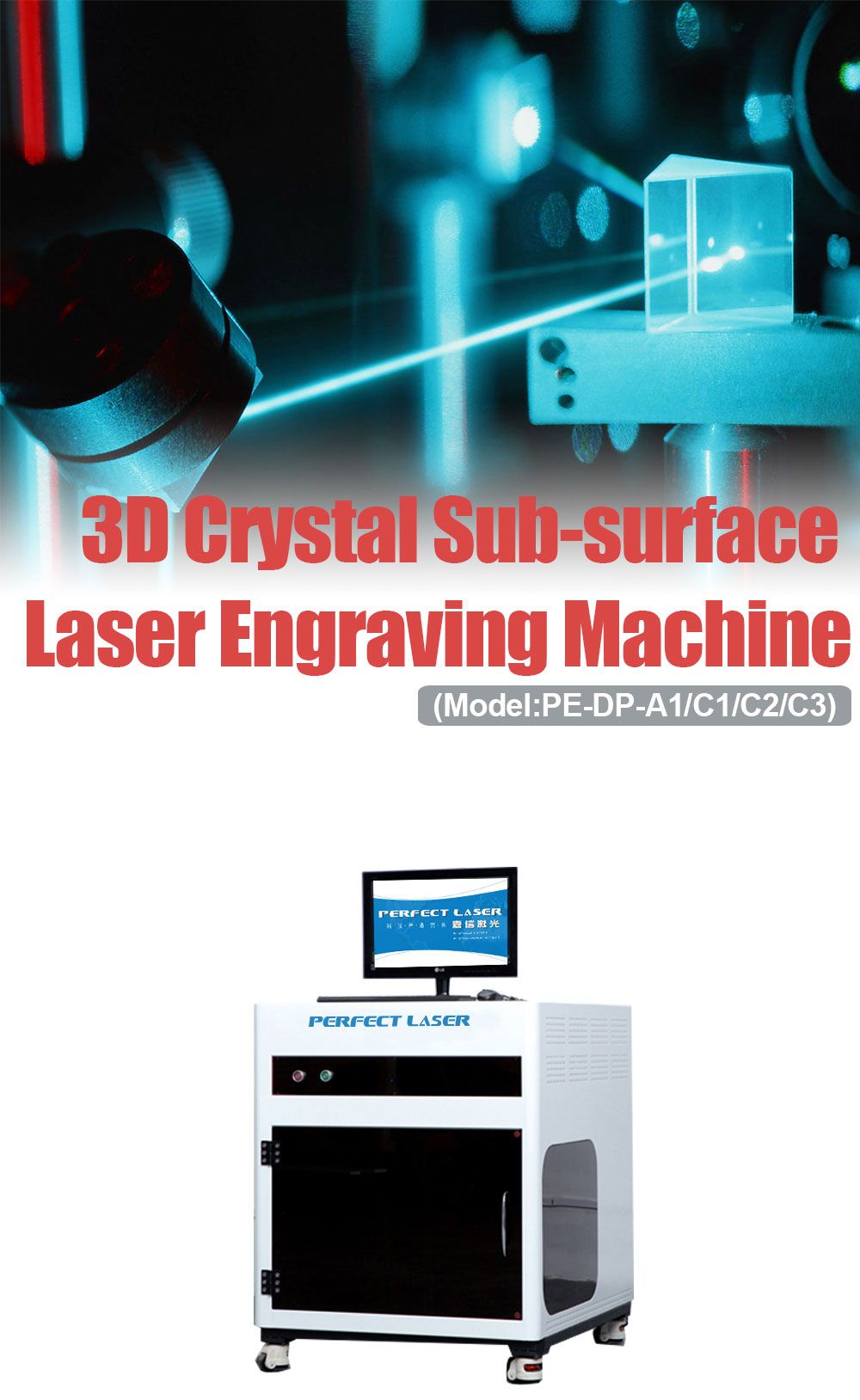

High Power Gift Souvenirs 3D Laser inner Crystal Engraving Machine
Advantage:
1)Use the imported air cooling laser system, stable, easy maintenance
2)High speed, only 2-3 minutes for one 3d portrait engraving, suitable to tourist resorts
3)Good engrave quality, high solution. The pattern of engraving is exquisite, crystal-clear and strong tri- dimensional sense.
4)Non-touching process ensures that the surface of the crystal keeps complete.
Description:

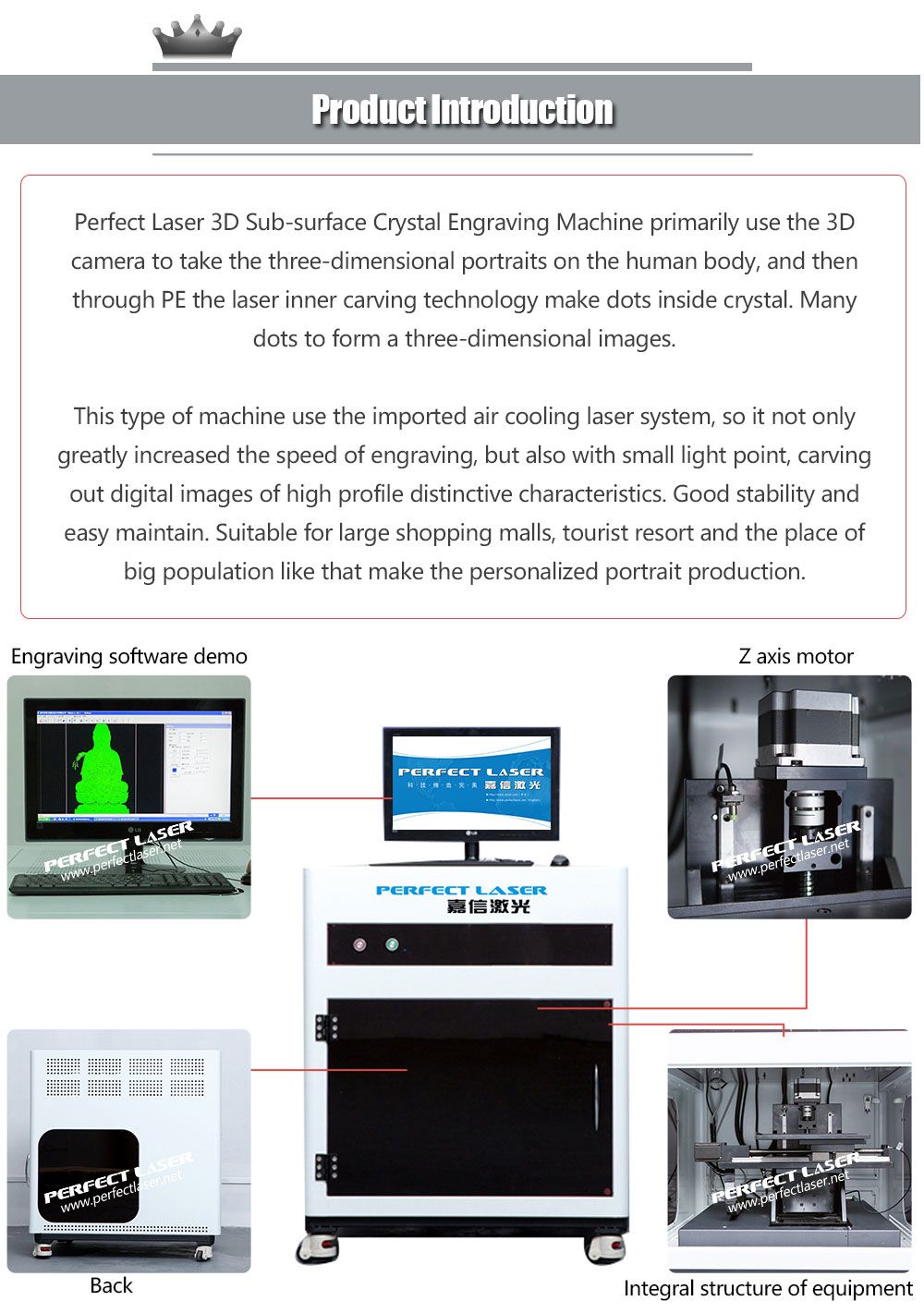

This type of machine use the imported air cooling laser system, so it not only greatly increased the speed of engraving, but also with small light point, carving out digital images of high profile distinctive characteristics. Good stability and easy maintain. Suitable for large shopping malls, tourist resort and the place of big population like that make the personalized portrait production.

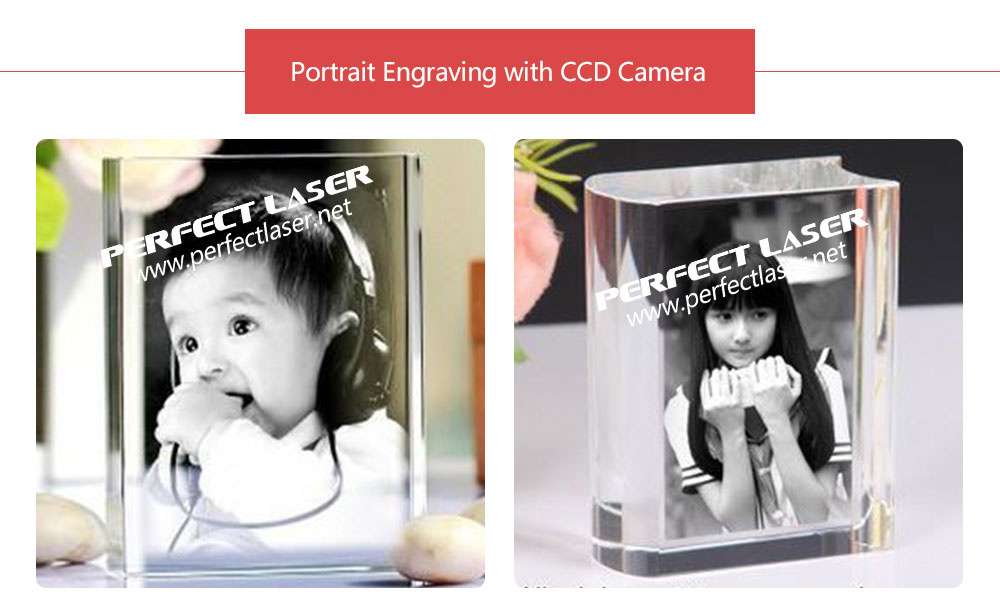

Perfect Laser High-speed Scan laser Sub-surface Engraving Machine primarily use the 3D camera to take the three-dimensional portraits on the human body, and then through PE the laser inner carving technology make dots inside crystal. Many dots to form a three-dimensional images.

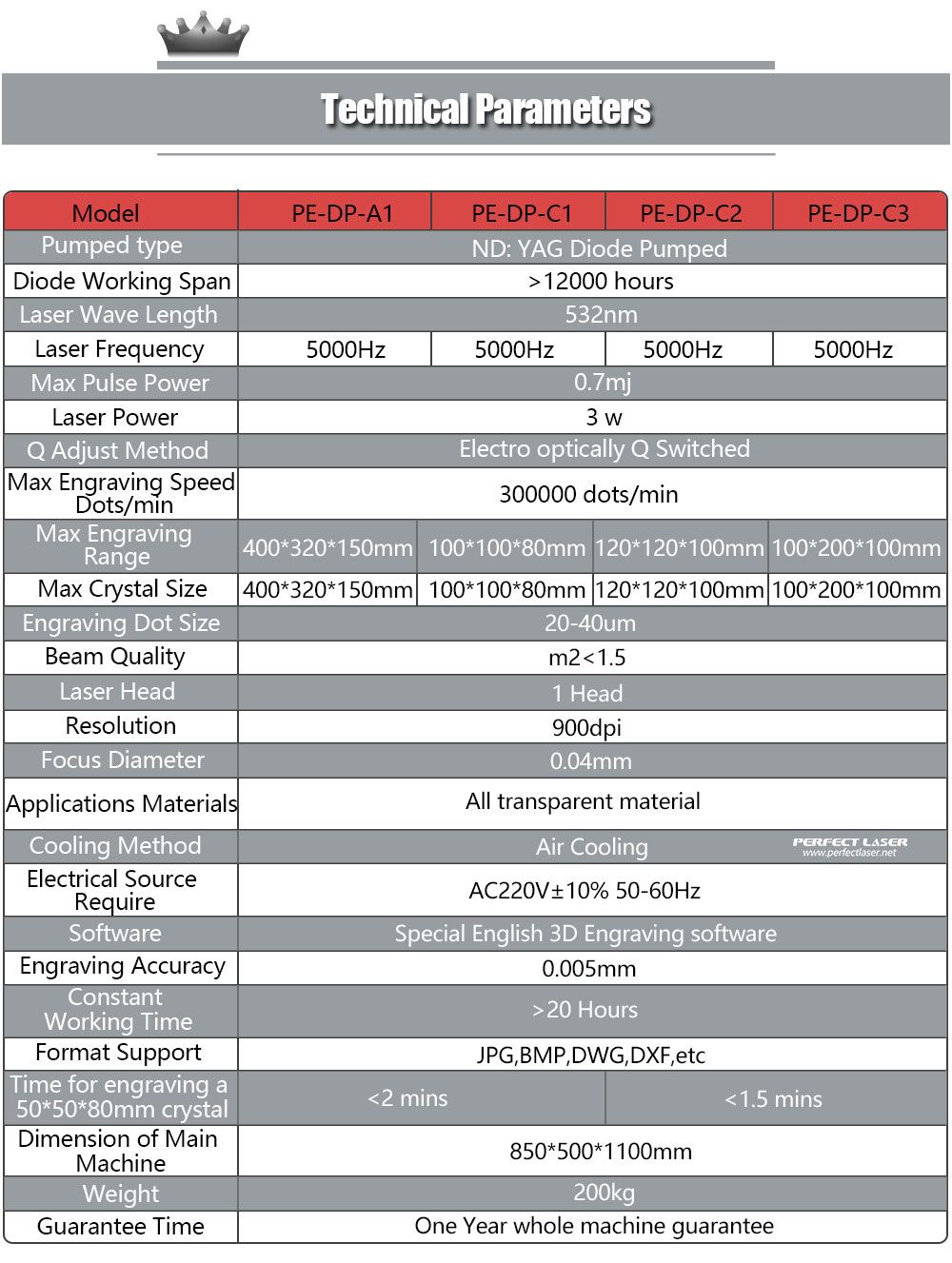

Technical Data:
CE Model/Parameter | PE-DP-C1 | PE-DP-C2 | PE-DP-C3 |
Pumped type | ND: YAG Diode Pumped |
Diode Working Span | >12000 hours |
Laser Wave Length | 532nm |
Laser Frequency | 5000Hz |
Max Pulse Power | 0.7mj |
Laser Power | 3w |
Q Adjust Method | Electro optically Q Switched |
Max Engraving Speed Dots/min | 300000 dots/min |
Max Engraving Range | 100*100*80mm | 120*120*100mm | 400*3200*150mm |
Engraving Dot Size | 20-40um |
Beam Quality | m2<1.5 |
Laser Head | 1 Head |
Resolution | 900dpi |
Focus Diameter | 0.04mm |
Applications Materials | All transparent material |
Cooling Method | Air Cooling |
Electrical Source Require | AC220V±10% 50-60Hz |
Software | Special English 3D Engraving software(convert 2D image into 3D image) |
Engraving Accuracy | 0.005mm |
Constant Working Time | >20 Hours |
Format Support | JPG,BMP,DWG,DXF,etc |
Timeforengravinga 50*50*80mm crystal | <3 mins |
Dimension of Main Machine | 580*620*720mm |
Weight | 90kgs | 100kgs | 110kgs |
Guarantee Time | One Year |
