Product Specifications
| Prod Model: |
PE-DP-C3 |
| Controlling Mode: |
CNC |
| Feed Mode: |
Mechanical |
| Spindle Number: |
Single-Spindle |
| Spindle Layout: |
Vertical |
| Condition: |
New |
| Customized: |
Customized |
Product Description

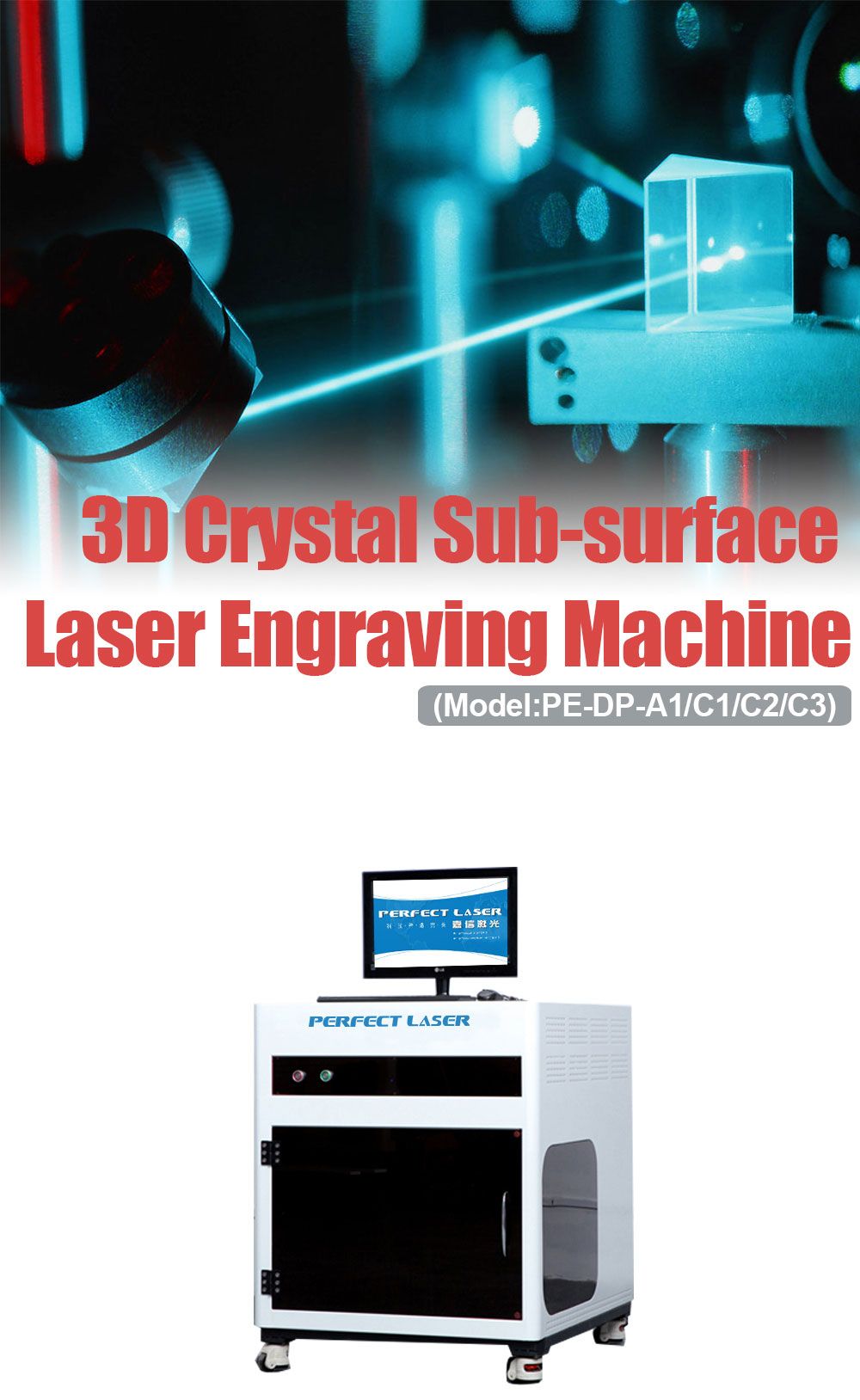

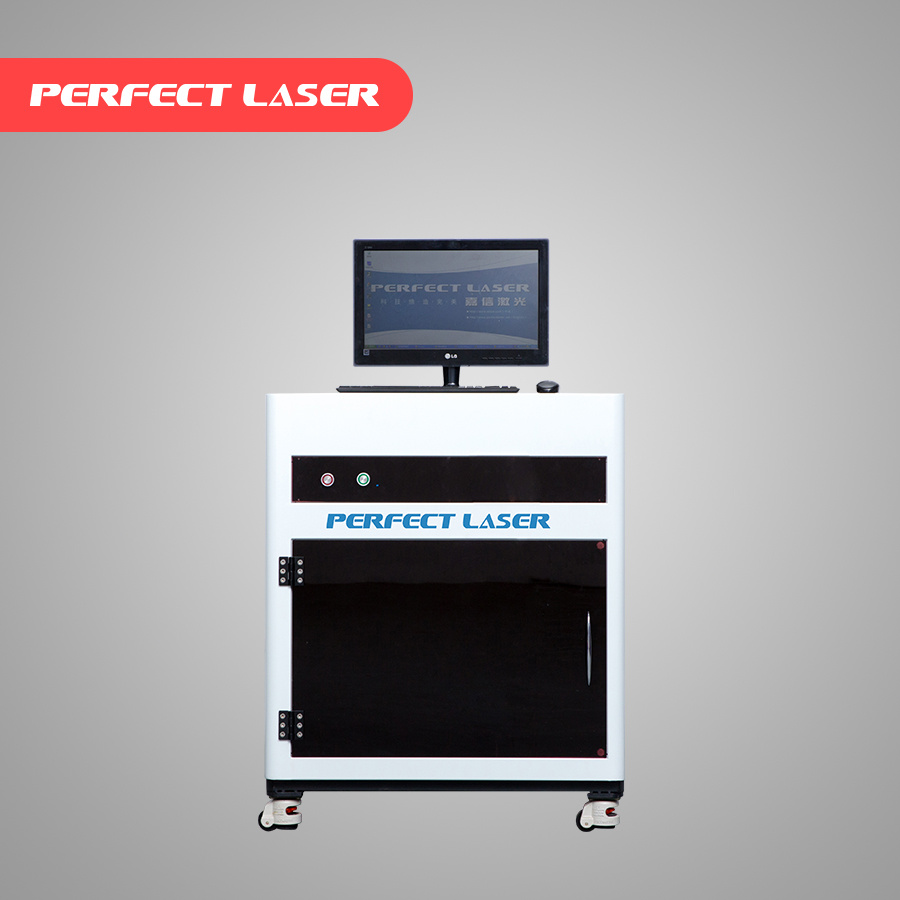

3d crystal glass laser engraving machine price with CE/ISO/FDA certificate
Advantage:
1)Use the imported air cooling laser system, stable, easy maintenance
2)High speed, only 2-3 minutes for one 3d portrait engraving, suitable to tourist resorts
3)Good engrave quality, high solution. The pattern of engraving is exquisite, crystal-clear and strong tri- dimensional sense.
4)Non-touching process ensures that the surface of the crystal keeps complete.
Description:
This type of machine use the imported air cooling laser system, so it not only greatly increased the speed of engraving, but also with small light point, carving out digital images of high profile distinctive characteristics. Good stability and easy maintain. Suitable for large shopping malls, tourist resort and the place of big population like that make the personalized portrait production.

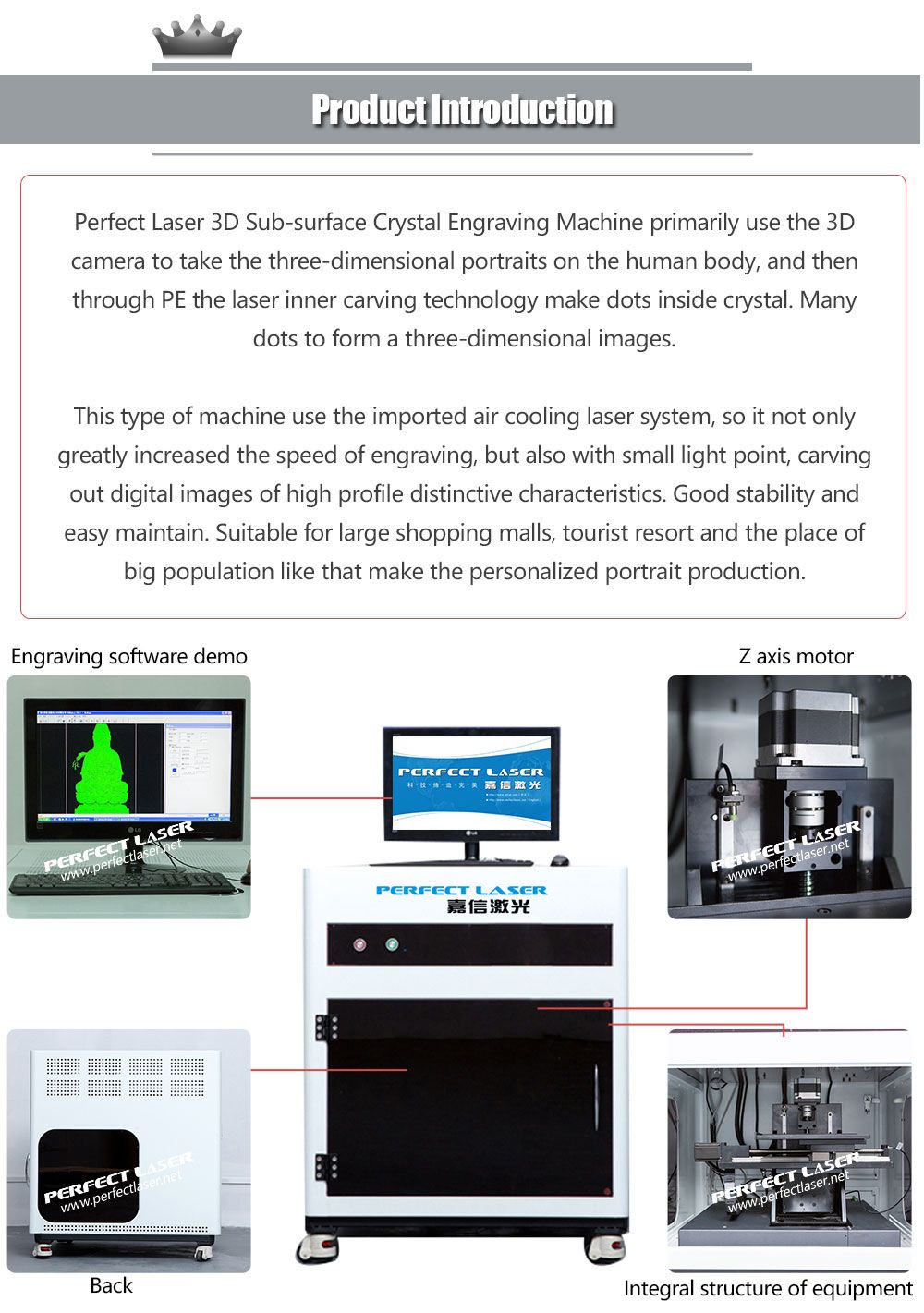

Perfect Laser High-speed Scan laser Sub-surface Engraving Machine primarily use the 3D camera to take the three-dimensional portraits on the human body, and then through PE the laser inner carving technology make dots inside crystal. Many dots to form a three-dimensional images.

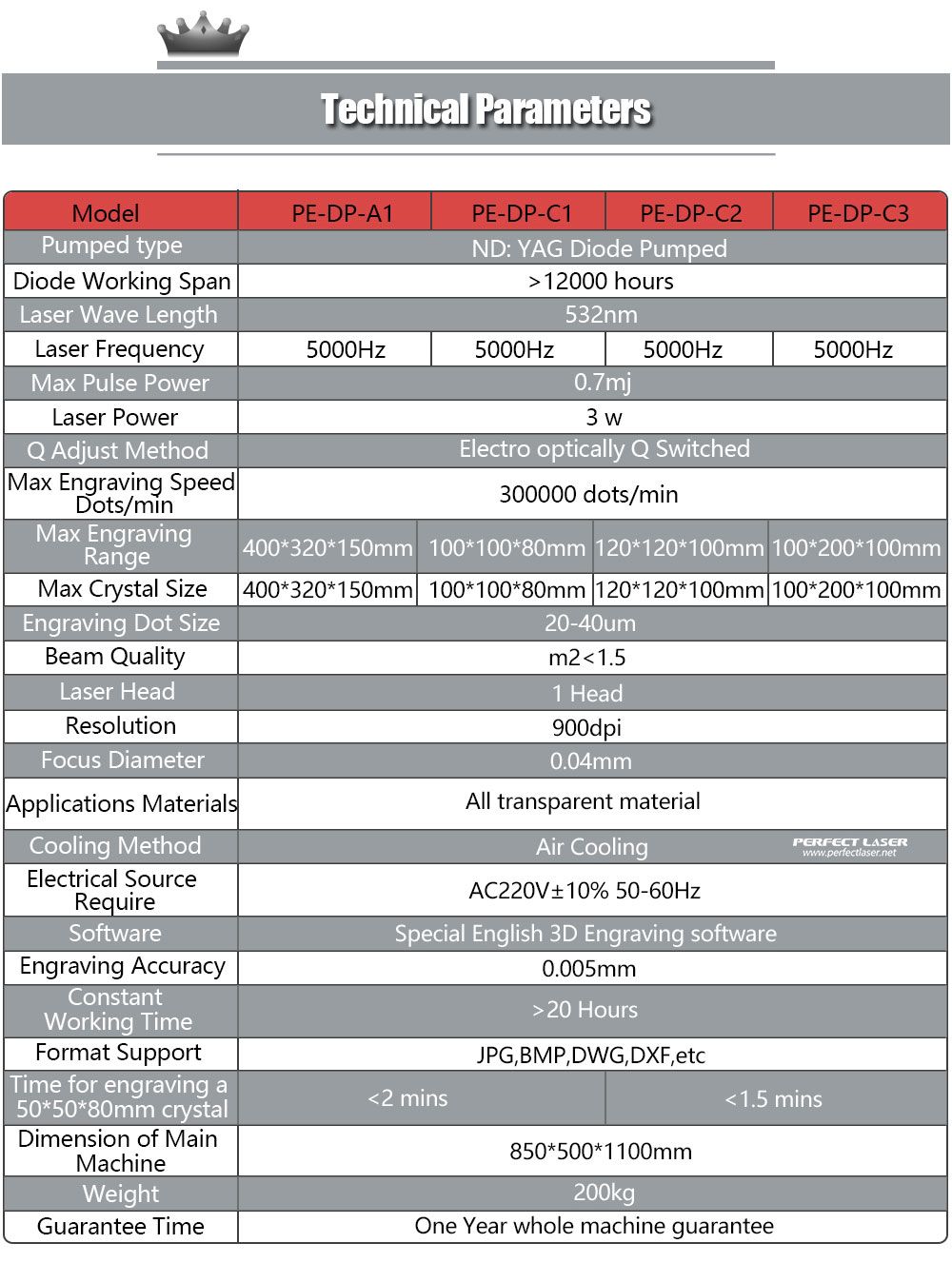

Technical Data:
CE Model/Parameter | PE-DP-C1 | PE-DP-C2 | PE-DP-C3 |
Pumped type | ND: YAG Diode Pumped |
Diode Working Span | >12000 hours |
Laser Wave Length | 532nm |
Laser Frequency | 5000Hz |
Max Pulse Power | 0.7mj |
Laser Power | 3w |
Q Adjust Method | Electro optically Q Switched |
Max Engraving Speed Dots/min | 300000 dots/min |
Max Engraving Range | 100*100*80mm | 120*120*100mm | 400*3200*150mm |
Engraving Dot Size | 20-40um |
Beam Quality | m2<1.5 |
Laser Head | 1 Head |
Resolution | 900dpi |
Focus Diameter | 0.04mm |
Applications Materials | All transparent material |
Cooling Method | Air Cooling |
Electrical Source Require | AC220V±10% 50-60Hz |
Software | Special English 3D Engraving software(convert 2D image into 3D image) |
Engraving Accuracy | 0.005mm |
Constant Working Time | >20 Hours |
Format Support | JPG,BMP,DWG,DXF,etc |
Timeforengravinga 50*50*80mm crystal | <3 mins |
Dimension of Main Machine | 580*620*720mm |
Weight | 90kgs | 100kgs | 110kgs |
Guarantee Time | One Year |
Perfect Laser (Wuhan) Co., Ltd. is a professional manufacturer of industrial laser equipment, located in China "Optics Valley" - Wuhan City. Since 1995, Perfect Laser focused on the development and production of various types of laser machinery and CNC equipment.
With over 20 years efforts and innovation. Our products have been exported to 180 different countries and regions. Our company has the European CE certificate, Germany TUV certificate, ISO9001: 2000 quality system certificate.
We are one of the most trustworthy company in central China among laser equipment manufacturers. Winning the honor of "Hi-tech Eenterprise" and "Famous Brand in Hubei Province", Perfect Laser willcontinue to embrace and create a better future with open mind.
Perfect Laser History
1995, Company established. Distribute large laser medical surgical instruments.
2003, Renamed as Wuhan Perfect Laser Co., Ltd. (China), set up business in the field of laser equipment manufacturing and sales.
2005, Set up Perfect Laser (Wuhan) Co., Ltd international group. Become an international group Co., Ltd, which concludes mass production, science and technology research and development, global sales and after sales service.
2008, Obtained the ISO 9001: 2000 Quality Management System Certification.
2009, Obtained "The Most Competitive Brand In China".
2010, Become the most popular laser equipment manufacturers and exporters of central China.
2011, Acquired The European Union CE certification, to prove stable reliability of products.
2012, Became the most reliable and trustworthy integrity manufacturing enterprises, products exported to more than 130 countries and regions.
2013, Become the excellent member of the "Hubei Association of E-commerce Association", make mutual progress with other members through exchange of learning.
2014, Get approval to apply for "High-tech Enterprise" and gained eight patents. Products exported to over 180 countries.
2015, Won the honor of "high-tech Enterprises". Become director member of " Hubei Association of E-commerce Association"
Why Choose Perfect Laser
Professional
We produce 20 series product ranges and 200 different models, including: Fiber Laser, YAG laser, CO2 Laser Engraver, YAG Metal Cutting Machine, Fiber metal cutter, Robot Metal Laser Cutting Machine, Fiber & YAG Laser Welder, as well as supplying laser components.
Reliable Quality
Approved by ISO9001 and European CE certified, have excellent quality and reliable quality. We have full experience in R&D, manufacturing, sales, exporting and after-sales services.
24 hours Technical Support
Perfect Laser offer you the overall pre-sales service, including free pre-sales consulting, free sample making, factory-visiting is available for you any time. We offer 24 hours after-sales service.
Any kind of technical support are available for users.
Flexible Payment
With products exported to over 180 countries and regions, we have adequate funds circulation, we accept flexible payment terms to reduce your financial pressure.
Customer-Oriented
Perfect Laser always hold the banner of matching the needs of users of services throughout the course of service. We committed to grow together with customers and partners.
